MIC-350B Shrink Sleeve Label Machine (Speed 40 Meter Per Min)

Introduction to Shrink Sleeve Label Machine

Jiangsu Mic Machinery specializes in providing high-performance labeling solutions to enhance product branding and packaging efficiency. Our shrink sleeve label machine is designed for fast, precise, and seamless application of shrink sleeve labels on bottles, cans, and other containers. Whether used in the beverage, food, cosmetics, or pharmaceutical industries, this machine ensures a professional and secure label application.

Equipped with an advanced shrink sleeve applicator machine, this system accurately positions shrink sleeves onto containers before they pass through a heat tunnel for a perfect fit. Additionally, our automatic shrink sleeve applicator machine offers a fully automated solution, reducing manual labor while increasing production speed and efficiency.

	Main technical parameters of the equipment: Voltage: 1.Host machine; AC220V, 50/60HZ, 4KW, single-phase 2.Production speed:18000-21000 b/h as 100mm label. 3.The standard length of label is 300mm and the speed can be adjusted accord to customer’s requirements. The speed will be faster if the label is shorter. 4.Diameter of bottle body : ∮40mm-∮100mm 5.Length of label:100mm 6.Thickness of label:0.045mm 7.Material of label：PVC、PET、 OPS

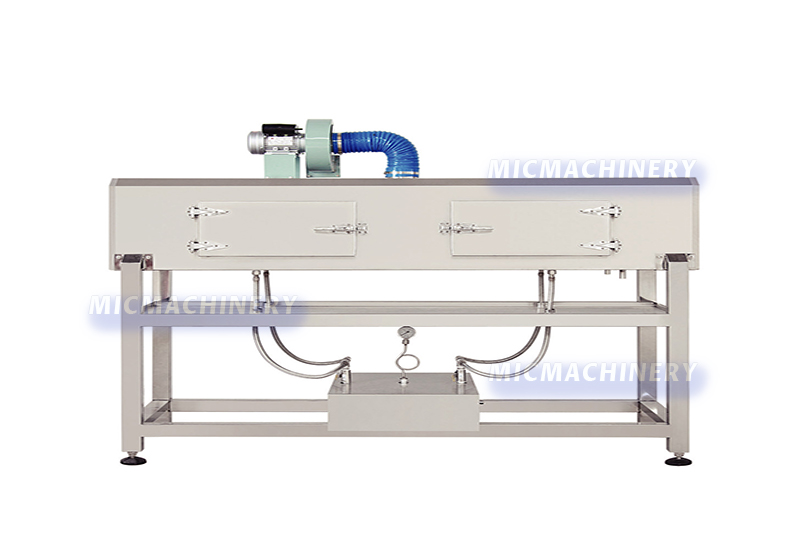

SLM-1800 Steam Shrink Tunnel 1. In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style both steam and electricity shrinking oven is easy to adjust and maintain. It has an even shrinking . 2.The distribution of low-pressure steam drum and sqouting way of steam are uniform and designed with seamless tube. 3.The nozzle is divided to be adjustable three segments and the height , position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. 4 .The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also comply with the international safety standard. 5 .The stainless steel defrosting tray collects condense water. 6. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.

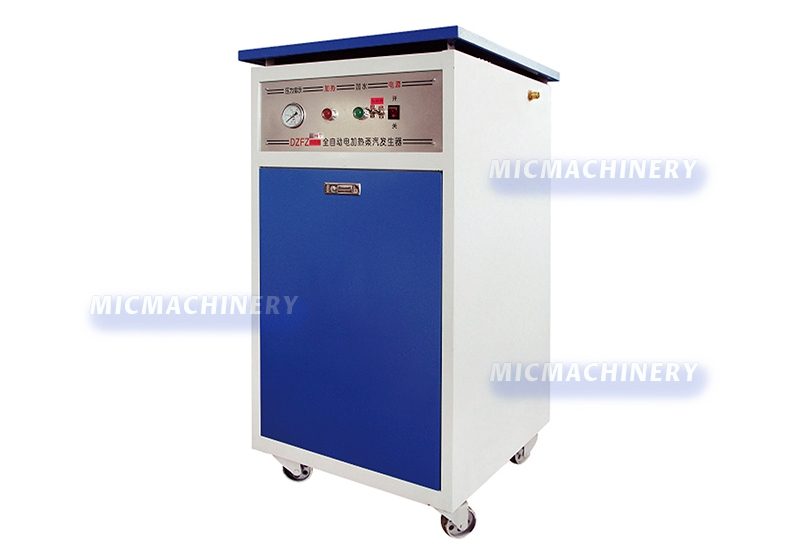

	Stream Generator   The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.

Description of the Shrink Sleeve Label Machine

The shrink sleeve label machine is engineered for high-speed, accurate label application, ensuring that sleeves are securely placed on a variety of packaging types. The machine carefully applies labels that shrink uniformly onto containers, enhancing product visibility and providing a tamper-evident seal.

Our shrink sleeve applicator machine is built to handle different label materials, including PET, PVC, and OPS sleeves, accommodating a wide range of container sizes and shapes. This flexibility makes it an ideal solution for manufacturers with diverse product lines.

For businesses requiring fully automated labeling, our automatic shrink sleeve applicator machine ensures smooth, continuous operation with minimal manual intervention. This system is designed for seamless integration into production lines, enhancing output efficiency while maintaining high-quality labeling standards.

Key Features:

• High-speed labeling for bottles, cans, and other containers.
• Accurate sleeve positioning with automated sensors.
• Shrink sleeve applicator machine for precise label application.
• Automatic shrink sleeve applicator machine for fully automated operation.
• User-friendly interface for easy setup and quick adjustments.

Conclusion

Jiangsu Mic Machinery’s shrink sleeve label machine provides an efficient and high-quality solution for businesses looking to enhance their product packaging. Whether you need a shrink sleeve applicator machine for precise label positioning or an automatic shrink sleeve applicator machine for full automation, our equipment guarantees reliability, speed, and accuracy. Upgrade your labeling process with our advanced shrink sleeve technology today!

Description of the machine

Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours ,it’s maintenance is easy and maintain is simple ,so it doesn’t influence production.

Unit cutter head plane design in China which apply to the container of ∮40mm—∮70mm.you never need to change or debug it. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.

Single shrinking label feed plane ,reasonable height which is convenient to fix the label ;micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly ,the label will detect and locate automatically .The change of label is quick and convenient, besides ,the cut place is absolutely exact .

Label feeding equipment :driving synchronized tensility control the supply of label ,the supply ability is 90meters per minute, volume label supply plane is ∮500mm,the internal diameter of paper tube will be 4’ ,8’,10’ .the configuration of label feeding is stable tensility which enable the exact length of label and the stable ,quick supply of label .The center pillar apply step by step shoot label structure and the speed is 150B per minute for 100mm label.

The newly designed cutter head use step by servo motor driving which speed is high ,action is exact ,the cut is in order and the shrinking is beautiful .This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.

Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.

This is the discription of shrink wrap label machine,heat shrink sleeve machine,bottle shrink sleeve machine

An automatic sleeving machine is a specialized piece of equipment used in the packaging industry for applying shrink sleeve labels to a variety of products, including bottles, cans, jars, and other containers. As its name suggests, an automatic sleeving machine is an automated system that requires little to no manual intervention and can apply labels quickly and accurately.

One of the main advantages of using an automatic sleeving machine is its speed and efficiency. With the ability to apply labels at high speeds, an automatic sleeving machine can help streamline your production process and increase your output. This can be especially useful for businesses that need to label large volumes of products quickly and consistently.

Another benefit of using an automatic sleeving machine is its accuracy. These machines use advanced technology to ensure that labels are applied precisely and consistently, reducing the likelihood of errors and minimizing waste. This can help improve the overall quality of your products and save you money in the long run.

When selecting an automatic sleeving machine, it's important to consider factors such as the machine's speed, accuracy, and compatibility with your existing packaging line. You'll also want to ensure that the machine can handle the types of products you're labeling, as well as the size and shape of the labels you need.

Overall, an automatic sleeving machine is a valuable investment for businesses that want to enhance their packaging and labeling capabilities. By using an automated system, you can improve your efficiency, increase your output, and ultimately improve your bottom line.

Technical Parameters

Quotation for the machine

Technical Parameters

Detail list of Selecting and Using the Accessory

Toolbox detailed list
