MIC-250D Shrink Sleeve Applicator (45 Meter/Min)

Introduction to Shrink Sleeve Applicator

Jiangsu Mic Machinery specializes in providing high-quality labeling solutions for the packaging industry. Our shrink sleeve applicator is designed to efficiently apply shrink sleeve labels onto bottles, cans, and various containers, ensuring a smooth, professional finish. This system is widely used in industries such as beverages, cosmetics, pharmaceuticals, and food, offering superior branding and product protection.

Equipped with advanced automation, our bottle shrink sleeve machine ensures precise label application on plastic, glass, and metal bottles, enhancing their market appeal. Additionally, our beer can labeling machine provides fast and accurate sleeve labeling for breweries, ensuring high-quality branding for every can.

	Main technical parameters of the equipment: Voltage: 1.Host machine; AC220V, 50/60HZ, 4KW, single-phase 2.Production speed:18000-21000 b/h as 100mm label. 3.The standard length of label is 300mm and the speed can be adjusted accord to customer’s requirements. The speed will be faster if the label is shorter. 4.Diameter of bottle body : ∮40mm-∮100mm 5.Length of label:100mm 6.Thickness of label:0.045mm 7.Material of label：PVC、PET、 OPS

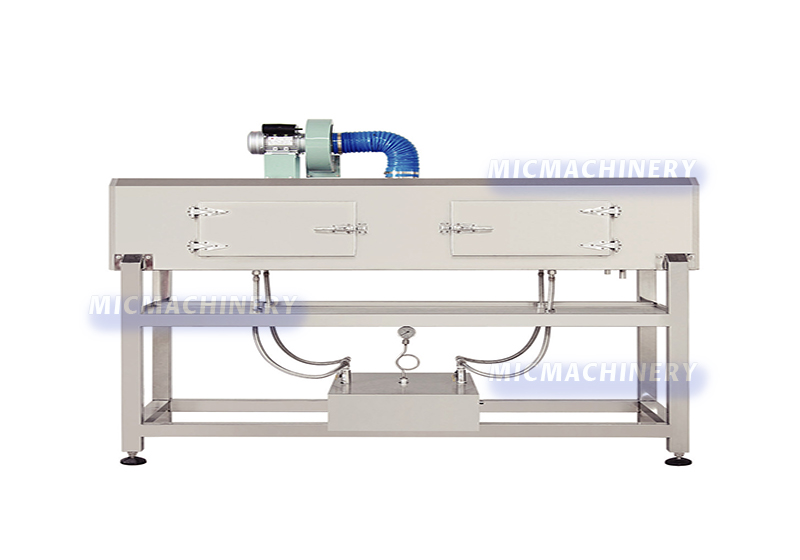

SLM-1800 Steam Shrink Tunnel 1. In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style both steam and electricity shrinking oven is easy to adjust and maintain. It has an even shrinking . 2.The distribution of low-pressure steam drum and sqouting way of steam are uniform and designed with seamless tube. 3.The nozzle is divided to be adjustable three segments and the height , position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. 4 .The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also comply with the international safety standard. 5 .The stainless steel defrosting tray collects condense water. 6. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.

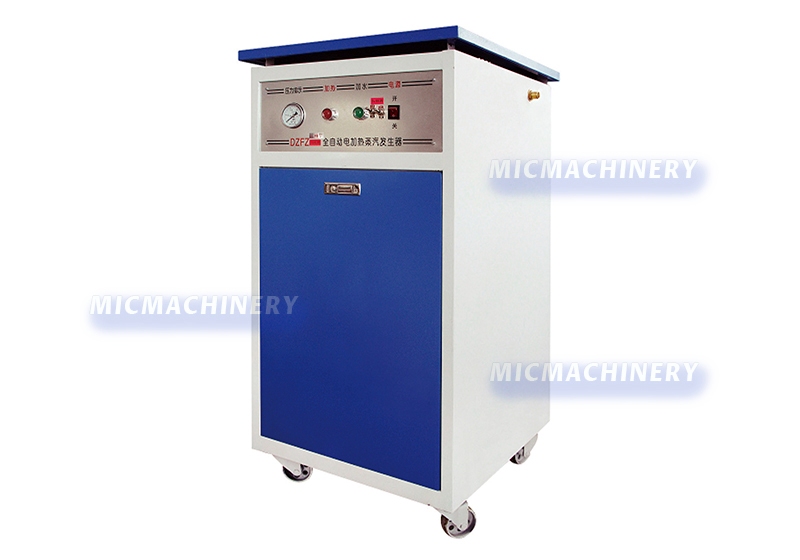

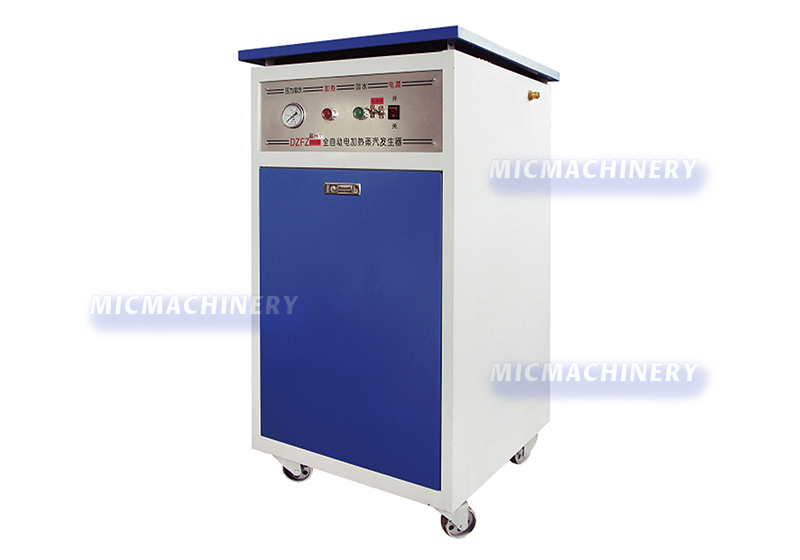

	Stream Generator   The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.

Description of the Shrink Sleeve Applicator

The shrink sleeve applicator is built to apply shrink labels with high speed and accuracy. The machine carefully places shrink sleeves over the containers, which then pass through a heat tunnel to achieve a tight and secure fit. This process guarantees a smooth label finish while maintaining the integrity of the packaging.

Our bottle shrink sleeve machine is engineered to handle various bottle shapes and sizes, making it ideal for water, juice, and cosmetic bottles. It ensures seamless label wrapping, improving product presentation and shelf appeal.

For breweries, our beer can labeling machine is designed to accommodate different can sizes, applying shrink sleeve labels efficiently in high-speed production lines. This feature is essential for branding consistency and durability, even in cold storage conditions.

Key Features:

• High-speed shrink sleeve application for bottles, cans, and other containers.
• Precision labeling with automated sensors for accurate positioning.
• Bottle shrink sleeve machine for seamless branding on plastic and glass bottles.
• Beer can labeling machine for professional, high-speed can labeling.
• User-friendly interface for easy operation and quick adjustments.

Conclusion

Jiangsu Mic Machinery’s shrink sleeve applicator is the perfect solution for businesses looking to enhance their packaging with high-quality shrink sleeve labels. Whether you need a bottle shrink sleeve machine for plastic and glass containers or a beer can labeling machine for breweries, our advanced labeling technology guarantees efficiency, accuracy, and superior product presentation. Upgrade your production line today with our reliable shrink sleeve labeling solutions!

Description of the machine

Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours ,it’s maintenance is easy and maintain is simple ,so it doesn’t influence production.

Unit cutter head plane design in China which apply to the container of ∮40mm—∮70mm.you never need to change or debug it. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.

Single shrinking label feed plane ,reasonable height which is convenient to fix the label ;micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly ,the label will detect and locate automatically .The change of label is quick and convenient, besides ,the cut place is absolutely exact .

Label feeding equipment :driving synchronized tensility control the supply of label ,the supply ability is 90meters per minute, volume label supply plane is ∮500mm,the internal diameter of paper tube will be 4’ ,8’,10’ .the configuration of label feeding is stable tensility which enable the exact length of label and the stable ,quick supply of label .The center pillar apply step by step shoot label structure and the speed is 150B per minute for 100mm label.

The newly designed cutter head use step by servo motor driving which speed is high ,action is exact ,the cut is in order and the shrinking is beautiful .This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.

Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.

This is the description of sleeve labeling machine, bottle sleeve machine, shrink sleeve label machine.

A sleeving machine for bottles is a specialized piece of equipment used in the packaging industry for applying shrink sleeve labels to bottles of various sizes and shapes. These machines use advanced technology to apply labels quickly and accurately, helping you achieve a professional and eye-catching look for your products.

One of the main advantages of using a sleeving machine for bottles is its ability to accommodate a wide range of bottle shapes and sizes. Whether you're labeling wine bottles, juice bottles, or any other type of bottle, a sleeving machine can help you achieve a consistent and professional look for your products.

Another benefit of using a sleeving machine for bottles is its efficiency. With the ability to apply labels at high speeds, these machines can help streamline your production process and increase your output. This can be especially useful for businesses that need to label large volumes of bottles quickly and consistently.

When selecting a sleeving machine for bottles, it's important to consider factors such as the machine's speed, accuracy, and ease of use. You'll also want to ensure that the machine is compatible with the types of bottles you're labeling, as well as the size and shape of the labels you need.

Overall, a sleeving machine for bottles is a valuable investment for businesses that want to enhance their packaging and labeling capabilities. By using a specialized machine, you can improve your efficiency, increase your output, and ultimately improve your bottom line.

Technical Parameters

Quotation for the machine

Technical Parameters

Toolbox detailed list
