Efficient Sauce Canning Machines for Precise & Hygienic Filling
At Jiangsu Mic Machinery, we specialize in manufacturing high-performance sauce canning machine solutions tailored for the food processing industry. Our systems are built for accuracy, hygiene, and long-term durability—perfect for thick, viscous, or chunky sauces that require careful handling and airtight sealing.
🍅 What Is a Sauce Canning Machine?
 |
A sauce canning machine is an industrial device designed to fill and seal various sauces—such as tomato paste, chili sauce, mayonnaise, or curry—into metal or aluminum cans. These machines ensure precise dosing, minimal product waste, and safe sealing for extended shelf life.
Our equipment includes robust sauce can filling machine models suitable for small to large-scale production lines.
|
⚙️ Core Features of Our Sauce Filling Solutions
|
At Jiangsu Mic Machinery, our sauce can filling machine systems come equipped with:
• Anti-drip, high-viscosity filling nozzles
• Servo-driven piston filling mechanisms
• Adjustable filling volumes for different sauce types
• Hopper heating & mixing functions (for paste consistency)
• Sanitary stainless steel construction with CIP cleaning capability
These features help maintain product integrity, especially for
sauces with particles or fibers, such as BBQ sauce or meat gravy.
|
 |

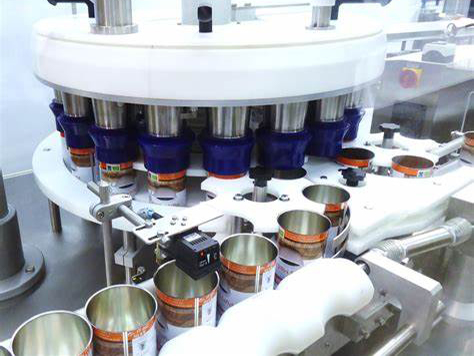

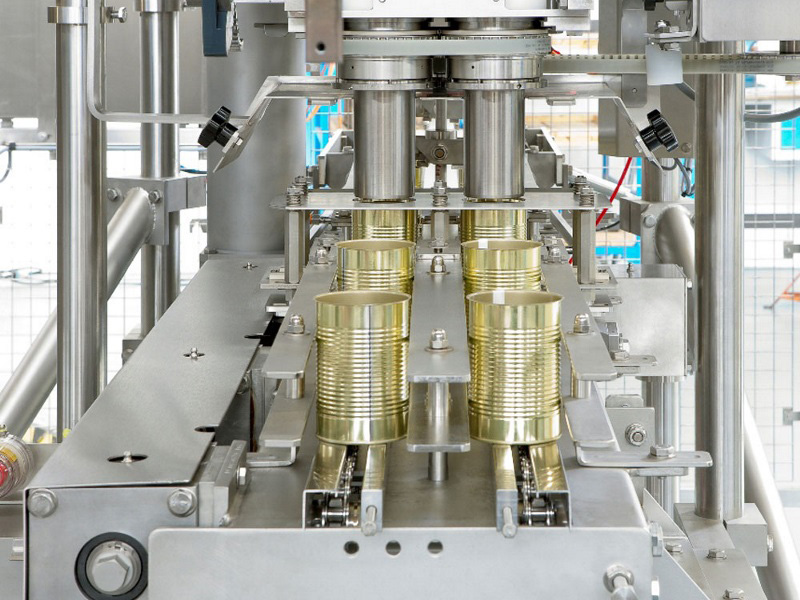

🔒 Sauce Can Filling and Sealing Machine Integration
 |
For complete packaging lines, we offer the sauce can filling sealing machine, combining accurate filling with high-speed, vacuum-tight can sealing. This integration ensures:
• Airtight lids for freshness and safety
• Automatic lid feeding and positioning
• High-speed output for mass production
• Compact footprint for factory floor optimization
The sauce can filling sealing machine is an all-in-one solution perfect for ready-to-eat sauce manufacturers or contract packers.
|
📐 Sauce Canning Machine Technical Specifications
Sauce Can Filling Machine:
| Model |
MIC-12 |
MIC-18 |
MIC-24 |
MIC-36 |
MIC-45 |
| Number of Filling Head |
12 |
18 |
24 |
36 |
1 |
| Cans Diameter |
39-160mm |
39-160mm |
39-160mm |
39-160mm |
Adjustable |
| Cans Height |
Φ52-99mm |
Φ52-99mm |
Φ52-99mm |
Φ52-73mm |
Adjustable |
| Filling Capability |
70-850g |
70-850g |
70-850g |
70-450g |
400-4500g |
| Production Capacity |
80-200 cans/min
|
80-300 cans/min
|
80-400 cans/min
|
80-600 cans/min |
15-25 cans/min |
| Power |
4KW |
5.5KW |
7.5KW |
5.5KW |
1.8KW |
| Weight |
1500KG |
2200KG |
2800KG |
4000KG |
600KG |
| Dimensions (mm) |
1800*1500*1900 |
2000*1650*2100 |
2200*1800*2100 |
2400*2000*2100 |
2000*1300*220015 |
Sauce Can Filling Seaming Machine:
| Model |
MIC-1204 |
MIC-1804 |
MIC-2406 |
MIC-3608 |
MIC-0604 |
MIC-0904 |
| Number of Capping Heads |
4 |
4 |
6 |
8 |
4 |
4 |
| Number of Filling Heads |
12 |
18 |
24 |
36 |
6 |
9 |
| Cans Height |
39-160mm |
39-160mm |
39-160mm |
39-160mm |
120-265mm |
120-265mm |
| Cans Diameter |
Ф52-99mm |
Ф52-99mm |
Ф52-99mm |
Ф52-73mm |
Ф153mm |
Ф153mm |
| Filling Capability |
70-850g |
70-850g |
70-850g |
70-450g |
2.2-4.5KG |
2.2-4.5KG |
| Production Capacity |
80-200 cans/min |
80-250 cans/min |
80-400 cans/min |
80-600 cans/min |
20-60 cans/min |
40-90 cans/min |
| Power |
5.5KW |
5.5KW |
7.5KW |
11KW |
5.5KW |
7.5KW |
| Weight |
4000KG |
4500KG |
5800KG |
6880KG |
4000KG |
5500KG |
| Dimensions (mm) |
2800*1600*1900 |
3000*1800*1900 |
3214*2104*1900 |
3650*2150*2200 |
2700*1700*1900 |
3200*1800*1900 |
🔄 Sauce Can Filling and Seaming Machine Options
Need a flexible solution that handles both filling and seaming? Our sauce can filling seaming machine units are designed to handle everything in one streamlined system—from thick condiments to oily pasta sauces.
Key benefits include:
• Precise synchronization between filling and seaming
• Adjustable can heights and diameters
• Vacuum or nitrogen flushing for longer shelf life
• Reduced downtime with quick-change parts
Whether you're running a manual, semi-automatic, or fully automated line, we offer scalable configurations to suit your production goals.
🏭 Applications of Our Sauce Canning Solutions
|
Our sauce canning machine and sealing systems are widely
used in:
• Ready-meal production facilities
• Canned food manufacturing plants
• Ethnic food packaging (e.g., curry or soy-based sauces)
• Specialty sauce brands seeking premium can packaging
We support can sizes from 100g up to 1L and beyond.
|
 |
🌍 Why Choose Jiangsu Mic Machinery?
With over 20 years of experience in automated packaging, Jiangsu Mic Machinery provides end-to-end engineering support, tailored machine customization, and global service coverage.
When you work with us, you receive:
• CE-compliant machines built with food-grade materials
• Full layout planning for your production line
• On-site training and remote diagnostics
• Reliable spare parts and warranty support
📞 Get the Right Sauce Canning Machine for Your Business
Looking to expand your sauce production line with a dependable sauce canning machine? Contact Jiangsu Mic Machinery today for a detailed consultation and quotation. Whether you need a standalone sauce can filling machine or a fully automated sauce can filling sealing machine, we have the right equipment for your packaging needs.
