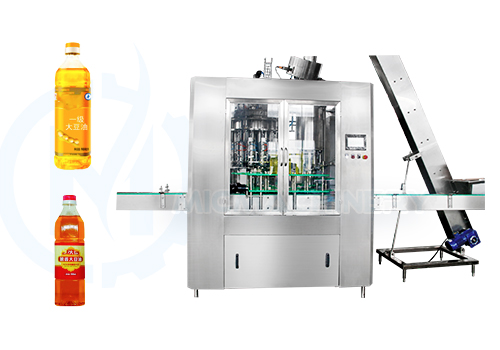

The MIC 18-4 Edible Oil Filling Line is a high-efficiency solution for filling various oils. It offers a production rate of 1800-2200 bottles/hour, ensuring precision, reliability, and seamless operation for your bottling needs.

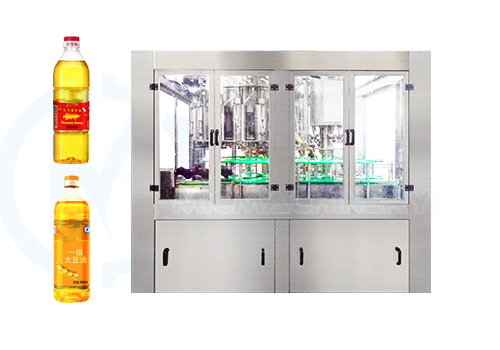

The MIC 18-6 Edible Oil Production Line offers a high-performance solution for filling edible oils, with a production capacity of 3000-6000 bottles per hour. It ensures precision, efficiency, and reliable operation for your bottling needs.
The MIC 24-6 Cooking Oil Production Line is designed for high-efficiency bottling, with a capacity of 3000-6000 bottles per hour. It ensures precision and reliability, making it ideal for large-scale cooking oil production.

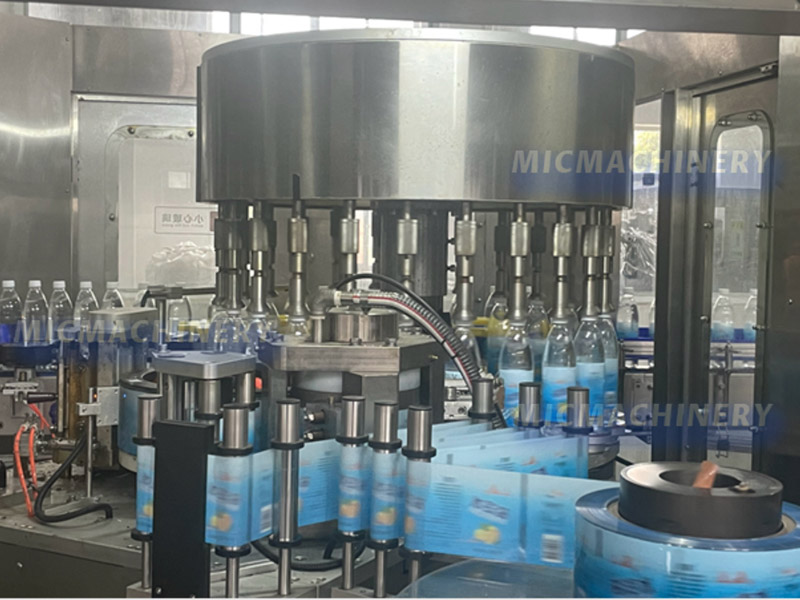

The MIC 24-6 Rotary Type Edible Oil Filling Line offers fast and efficient bottling with a capacity of 3000-6000 bottles per hour. Its rotary design ensures precision, smooth operation, and reliable performance for edible oil production.
The Edible Oil Production Line provides efficient, high-speed bottling for various oils, ensuring precision and reliability. With a capacity of 3000-6000 bottles per hour, it's designed for large-scale production.
🛢️ Edible Oil Filling Line-Reliable Bottling Solutions from Jiangsu Mic Machinery

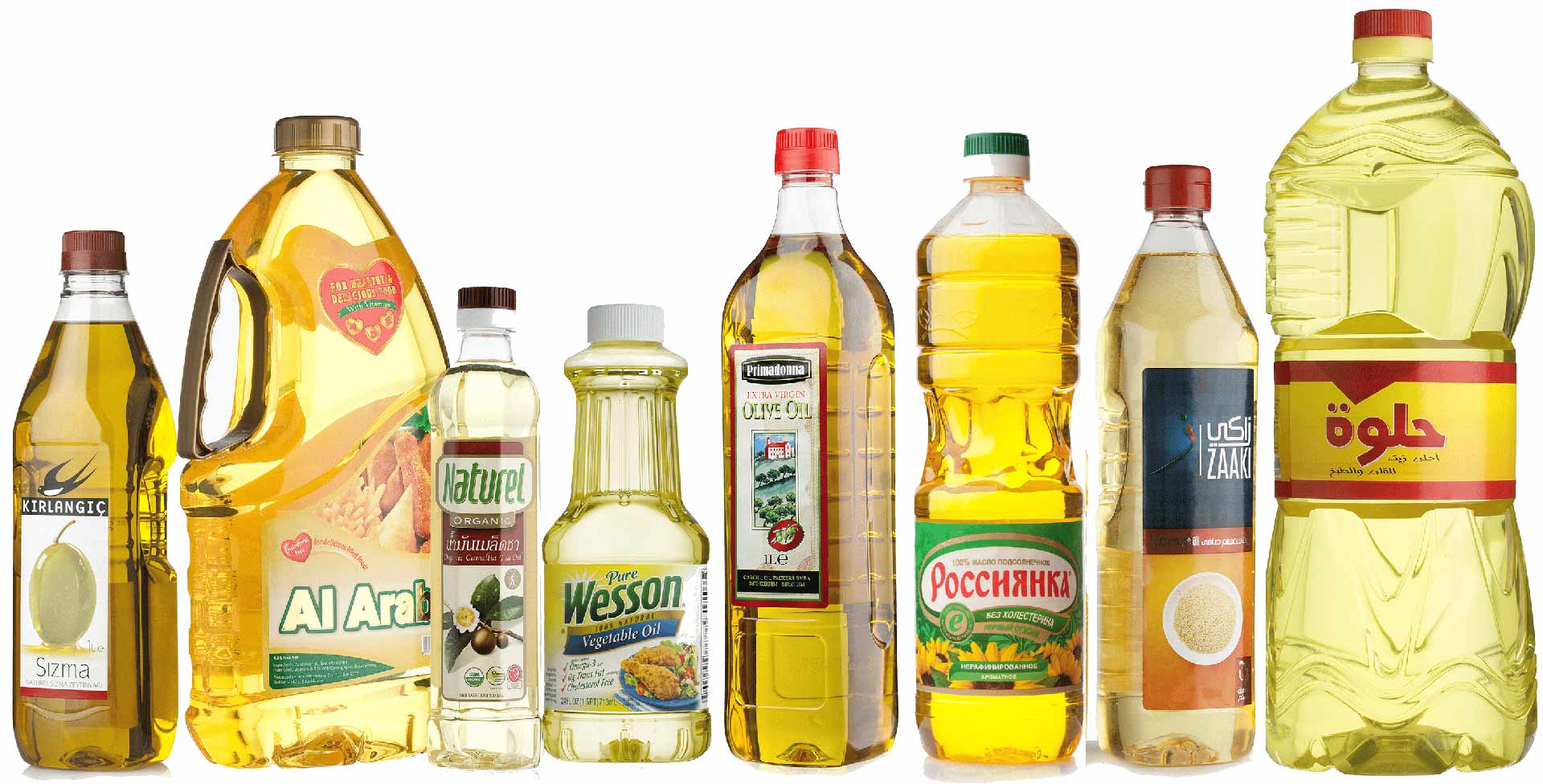

At Jiangsu Mic Machinery, we provide advanced packaging technology tailored for the edible oil industry. Our edible oil filling line is designed to handle various types of oils including sunflower, soybean, peanut, olive, and palm oil. From filling to capping and labeling, our equipment ensures efficiency, hygiene, and accuracy at every stage.
⚙️ High-Precision Oil Bottling Technology
Our edible oil filling line is equipped with servo-driven flow meters or weight-based systems to guarantee precise filling volumes. Whether you're filling 250ml bottles or 20-liter jerry cans, the system automatically adjusts to different container sizes without compromising speed or accuracy. All parts in contact with the oil are made of food-grade stainless steel, complying with international hygiene standards.
🏭 Complete Edible Oil Production Integration
Jiangsu Mic Machinery offers full turnkey solutions that go beyond filling. Our edible oil production line can include oil storage tanks, filtration units, de-aeration systems, and nitrogen-flushing options to ensure product longevity and stability. The entire process is PLC-controlled, offering real-time monitoring and minimal human intervention, which significantly reduces labor costs and contamination risk.
📐 Oil Filling Machine Technical Specification
Machine Model
ZF4 Bean Oil Filling Machine
ZF6 Olive Oil Bottling Machine
ZF8 Sunflower Oil Filling Machine
ZF8 Cooking Oil Filling Machine
ZF12 Oil Bottle Filling Machine
ZF16 Olive Oil Filling Machine
ZF20 Vegetable Oil Filling Machine
18-4 Oil Filling Machine
18-6 Edible Oil Filling Machine
Filling Heads
4 heads
6 heads
8 heads
8 heads
12 nozzles
16 heads
20 heads
18 heads
18 heads
Filling Volume Range
5L-25L
100ml-5L
50-1000ml
50-1000ml
200ml-1000ml
100ml-5000ml
200ml-2500ml
3-5L
250ml-2L
Production Speed
192-220 b/h (25L)
1300-1500 Bph (100ml)
≤1800 Bph (1000ml)
≤1800 Bph (1000ml)
3000 BPH (350ml)
3200 Bph
≤4000 Bph (1L)
1800-2200 BPH (5L)
2000-6000 Bph (500ml)
Voltage
380V three-phase
220V/380V
220V/380V
220V/380V
480V 60Hz 3P
220V/380V
220V/380V
-
380V/50Hz
Power
3.0Kw
2.8Kw
3Kw
3Kw
2.8Kw
2Kw
3.0Kw
1.5Kw
3.5Kw
Filling Error
≤±3‰
≤±1‰
≤±1
≤±1
±99%
≤±0.5%
≤±3‰
-
-
Work Pressure
0.55Mpa-0.65Mpa
0.55Mpa-0.65Mpa
0.55Mpa-0.65Mpa
0.55Mpa-0.65Mpa
0.6-0.8 Mpa
0.55Mpa-0.7Mpa
0.55Mpa-0.65Mpa
0.6-0.8Mpa
1.0Mpa
Air Consumption
0.6m³/min
0.9m³/min
-
-
-
0.9m³/min
-
0.8-1.0m³/min
-
Size (L×W×H)
2500×1600×2500mm
1840×1400×2500mm
2000×1400×2500mm
2000×1400×2500mm
-
2440×1240×2350mm
2800×1400×2500mm
2570×2300×2650mm
2600×1800×2000mm
Weight
700 kg
600 kg
1000 kg
1000 kg
-
700 kg
1000 kg
5000 Kg
2500kg
Suitable Bottle Diameter
120mm-250mm
Ф40mm-Ф250mm
Ф40mm-Ф100mm
Ф40mm-Ф100mm
-
Ф40mm-Ф100mm
Ф40mm-Ф100mm
Ф80-180MM
-

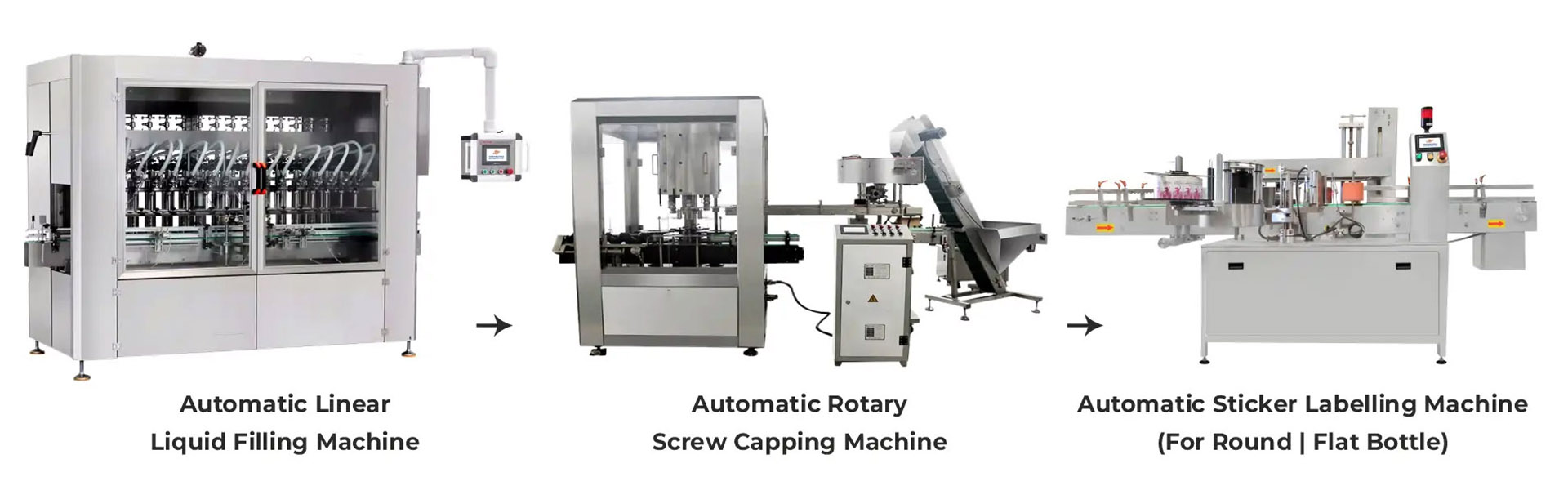

Flow DiagramOF Oil FILLING LINE
Plastic Bottle Blowing Machine
Blow the preform into the mold using high-pressure air for molding
Equipped with a stretching rod for longitudinal stretching, improving the strength of the bottle body
Automatic embryo delivery and bottle dispensing system for continuous production
Adopting PLC control system to precisely control the heating and blowing process
Film carriage moves vertically to cover the entire height of the load
Includes photoelectric sensors to detect load height automatically
Offers options for top-sheet application or corner reinforcement
Suitable for stabilizing products during transport and storage
🍳 Cooking Oil Bottling for Commercial Scale
Whether you're producing sunflower oil for retail or palm oil for bulk distribution, our cooking oil production line delivers consistent results. High-viscosity products are handled with special anti-drip nozzles, and optional bottle unscramblers and capping machines can be added for complete automation. Our systems are compatible with PET, HDPE, and glass containers.
💼 Why Choose Jiangsu Mic Machinery?
Over a decade of experience in designing and manufacturing edible oil filling line equipment
Global reach with installations in over 40 countries
CE-certified systems with durable, food-grade components
Customized design for both startup and large-scale edible oil production line operations
Full support including layout planning, installation, and after-sales service
📦 Scalable & Cost-Effective Solutions
Looking to launch a new oil brand or upgrade your bottling plant? Our flexible solutions ensure a smooth transition from semi-automatic systems to fully automatic cooking oil production line configurations. We cater to a wide range of packaging sizes and production speeds to suit different market needs.
📞 Contact Us for Your Edible Oil Project
If you're searching for a high-performance edible oil filling line backed by expert engineering and global service, Jiangsu Mic Machinery is your trusted partner. Let us help you build or expand your edible oil production line with reliability, precision, and cost-efficiency in mind.
