Introduction to the Hot Glue Labeling Machine
Jiangsu Mic Machinery introduces the hot glue labeling machine, an advanced labeling solution designed for high-speed, precise label application. This system is perfect for businesses in the beverage, food, and packaging industries that require reliable and efficient labeling. With the integration of the BOPP labeling machine technology, this machine ensures that labels are applied securely and accurately to a variety of container types, including plastic and glass bottles, cartons, and more. The water bottle labeling machine feature ensures smooth and consistent labeling specifically for water bottles, making it an ideal choice for high-volume production lines.
The hot glue labeling machine utilizes hot glue to apply labels with exceptional adhesion, providing a durable and tamper-evident solution. Whether you're working with water bottles or other packaging formats, this system guarantees optimal label application, enhancing both product appearance and brand recognition.
 |
Mechanical part
Host conveying mechanism: 2200W ACmotor (with reducer), frequency converter for speed regulation; Conveying mechanism: 750W AC motor (with reducer), frequency converter for speed regulation; industrial nylon chain plate conveyor belt Bottle feeding mechanism: Cooperate with star wheel positioning feeding mechanism to ensure the accuracy and stability of feeding Positioning mechanism: mechanical pre-positioning; use cam mechanism track for flattening bottle positioning and labeling Labeling mechanism: The rotating turntable drives the bottle, and the labeling is carried out during the rotation Feeding mechanism: high-speed servo OPP label film feeding system (driven by high-speed servo motor) Pressure mark mechanism: professional arc brush assembly Bottle guide mechanism: profile guide rail with dual coordinate adjustment Glue supply system: special hot melt glue supply system to ensure the accuracy and uniformity of gluing |
|
|
Equipment safety protection section
Safety protection: when the equipment is running, close the protective door to prevent injury to the operator Missing label alarm: set the alarm when the label will run out to remind the operator to prepare to replace the label Bottle shortage alarm: when there is a shortage of bottles, the equipment will stop and alarm; when there are bottles, it will automatically resume production, which is convenient for on-line production Air pressure detection: When the air pressure does not meet the production requirements of the equipment, the equipment will be shut down to prevent the production of defective products. Vacuum detection: When the vacuum degree does not meet the production requirements of the equipment, the equipment will be shut down to prevent the generation of defective products Temperature detection: When the temperature of the hot melt adhesive fails to meet the production requirements of the equipment, the equipment will be shut down to prevent the generation of defective products. |
|
 |
 |
How Labeling Works

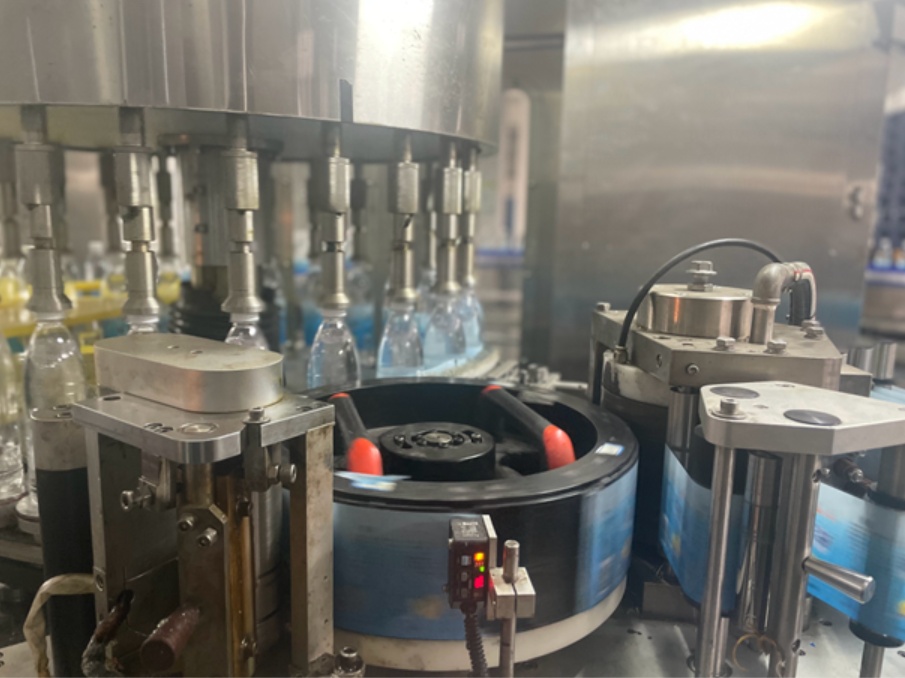

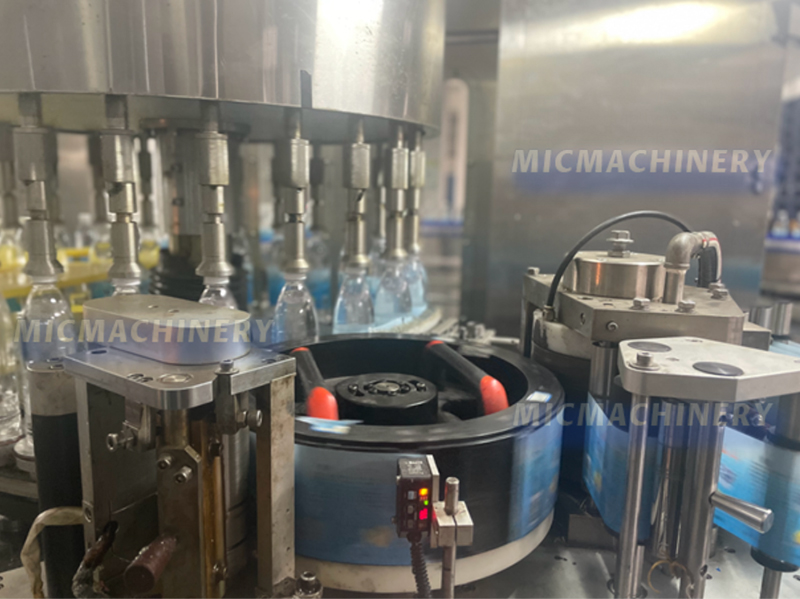

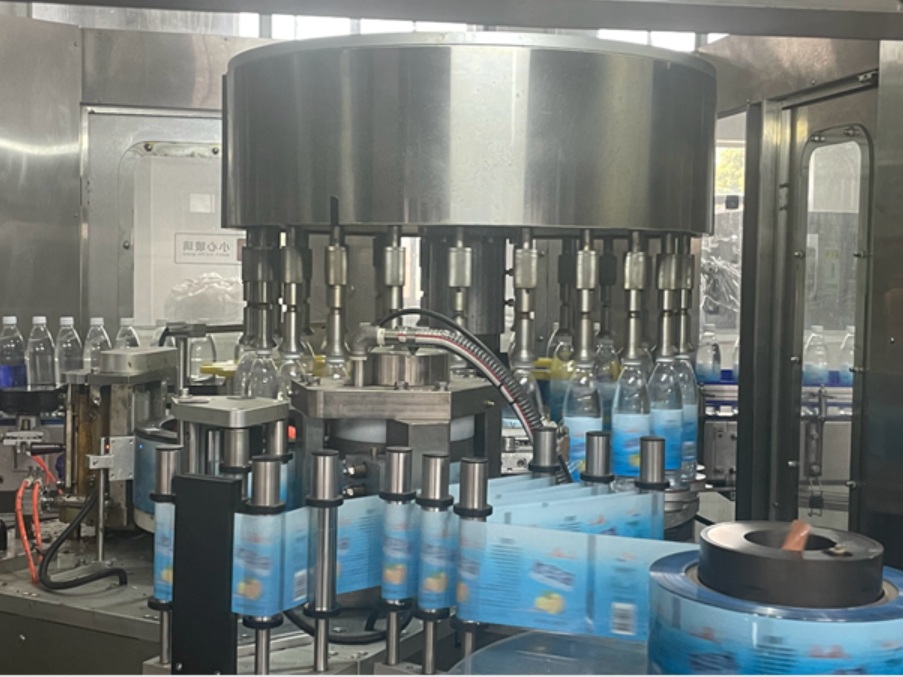

Thecontainers are separated by star wheels After a certain distance, the star wheel transfers the container to the turntable. After the container is fixed by the bottle pressing mechanism and the mold base of the container, the container starts to rotate at a certain speed; during the product rotation process, it is mechanically pre-positioned; and Positioning and labeling according to the trajectory of the organization When the container reaches the detection position of the electric eye, the computer host controls the label feeding system to send the label. When a label feeding action is completed, the high-speed cutter cuts off a label. The cut labels are fed into the gluing system; in this part, the system glues the two parts of the label's leading and trailing edges. This gluing method minimizes the consumption of hot melt adhesive. The glued label is accurately and efficiently applied to the container when it is transferred to the labeling position. Since the container is in a rotating state during the conveying process of the label, the label can be smoothly and tightly adhered to the container. |
Description of the Hot Glue Labeling Machine
Our hot glue labeling machine is engineered for high-speed, high-precision labeling, particularly for businesses that need to apply labels to containers quickly and consistently. The BOPP labeling machine ensures that labels made from biaxially oriented polypropylene (BOPP) are applied securely, making it perfect for labeling a wide range of containers, including bottles, jars, and boxes.
The water bottle labeling machine functionality of this system ensures that water bottles are labeled smoothly, providing excellent label adhesion and positioning. This feature is particularly important in the beverage industry, where product appearance and label durability are key to consumer satisfaction.
The hot glue labeling machine works by applying a thin layer of hot adhesive to the back of the label, which is then applied to the container. This method ensures strong adhesion, even in high-speed environments, and provides a high-quality finish that enhances both product presentation and shelf appeal.
Key Features:
-
High-speed labeling with the hot glue labeling machine for efficient and accurate label application.
-
BOPP labeling machine technology for secure application of BOPP labels on a variety of container types.
-
Water bottle labeling machine functionality for smooth, consistent labeling on water bottles.
-
Durable adhesive provided by the hot glue labeling machine for lasting label attachment.
-
User-friendly interface for easy operation and quick adjustments.
Conclusion
Jiangsu Mic Machinery’s hot glue labeling machine offers an efficient and reliable solution for businesses requiring high-speed, precise labeling of various containers. Whether you need a BOPP labeling machine for advanced label application or a water bottle labeling machine for specific labeling needs, our system guarantees superior performance and quality. Upgrade your production line with our advanced labeling technology today!
|
Total power |
Three-phase 380V 50 Hz 8KW |
|
Speed adjustment method |
stepless speed regulation |
|
Maximum labeling speed |
8000bottles/hour (500ml,production speed can be adjusted according to actual situation) |
|
Labeling accuracy |
±1mm |
|
Label width (height) |
150mm (standard width, the width can be increased according to the actual product size) |
|
Label maximum length |
500mm |
|
Outer diameter of label |
600 mm |
|
Diameter of paper core |
152mm |
|
Labeling glue |
hot melt glue, only glue on both ends of the label |
|
Glue temperature |
120～160℃ |
|
Label type |
OPP film label, paper-plastic composite film label, paper label |
|
Labeled product type |
round bottle(Square bottles can be customized) |
|
Overall weight |
About2200 Kg |
|
NO. |
NAME |
BRAND |
QTY |
|
1 |
Label delivery servo |
Schneider |
1 |
|
2 |
Air switch |
Schneider |
1 |
|
3 |
Breakers |
Schneider |
3 |
|
4 |
Relays |
Schneider |
6 |
|
5 |
Emergency stop button |
Schneider |
1 |
|
6 |
Frequency converters |
Siemens |
3 |
|
7 |
PLC |
Siemens |
1 |
|
8 |
Screen |
Siemens |
1 |
|
9 |
Gluing, missing paste, measuring standard photoelectric |
Panasonic |
3 |
|
10 |
Lack of bottles, blocked bottles, bottle measuring photoelectric |
Panasonic |
4 |
|
11 |
Lack of label, label loose roll photoelectric |
Panasonic |
2 |
|
12 |
Solid state relays |
MGR |
3 |
|
13 |
Proximity switch |
Autonics |
3 |
