MIC 24-6 Soft Drink Packing Machine (4000-8000CPH)
Company Introduction
Jiangsu Mic Machinery is a leading manufacturer of innovative beverage filling and packaging solutions. With years of experience and expertise in the industry, we specialize in designing and producing high-performance equipment tailored to meet the diverse needs of beverage manufacturers worldwide. Our MIC 24-6 soft drink packing machine exemplifies our commitment to delivering precision-engineered machinery that ensures efficiency, reliability, and superior product quality.
|
|
Precision Liquid Nitrogen Doser A precision liquid nitrogen doser ensures accurate and controlled nitrogen injection for optimal product preservation, packaging, and consistency. It enhances efficiency in various industries, including food and beverage. |
|

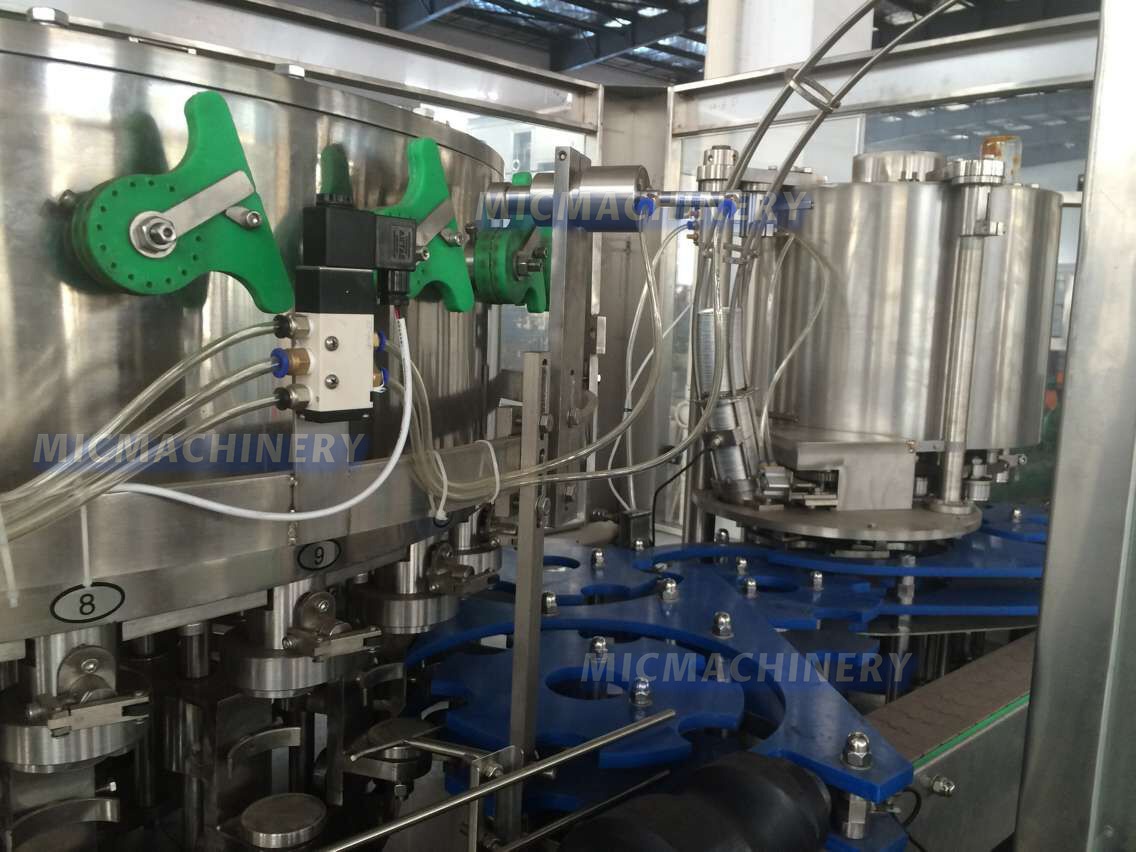

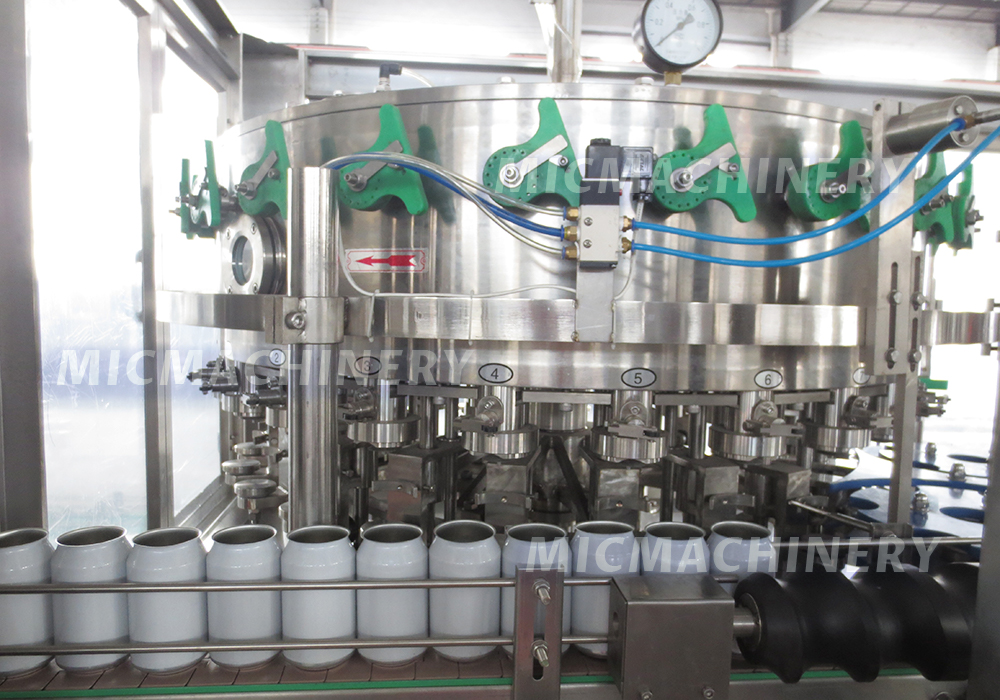

Isobaric pressure filling system An isobaric pressure filling system ensures precise, consistent filling of carbonated beverages by maintaining equal pressure in the filler and container. It preserves carbonation, improves filling speed, and reduces waste.
|
|
|
|

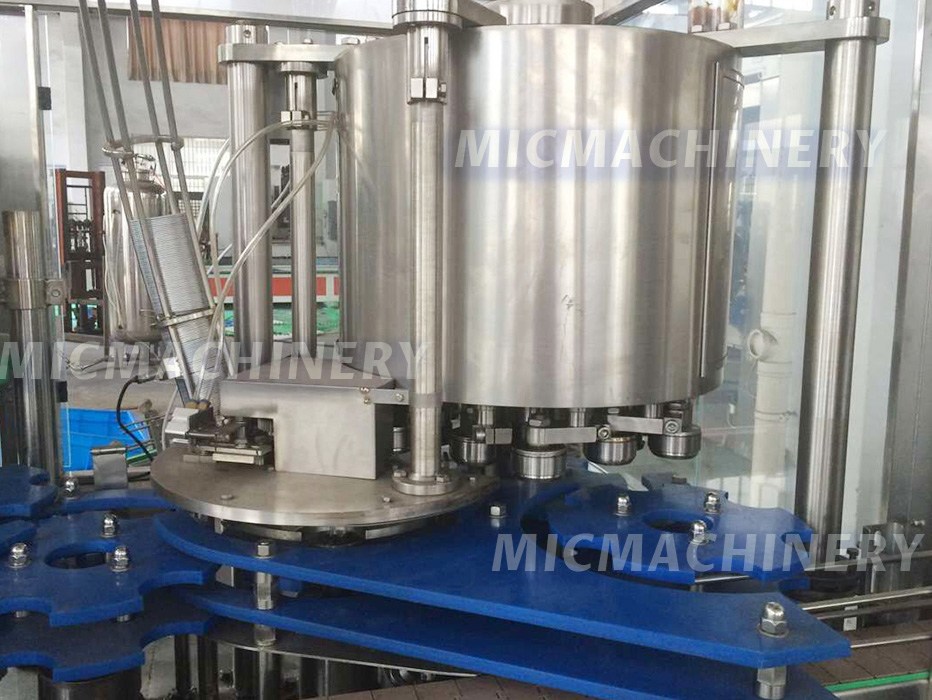

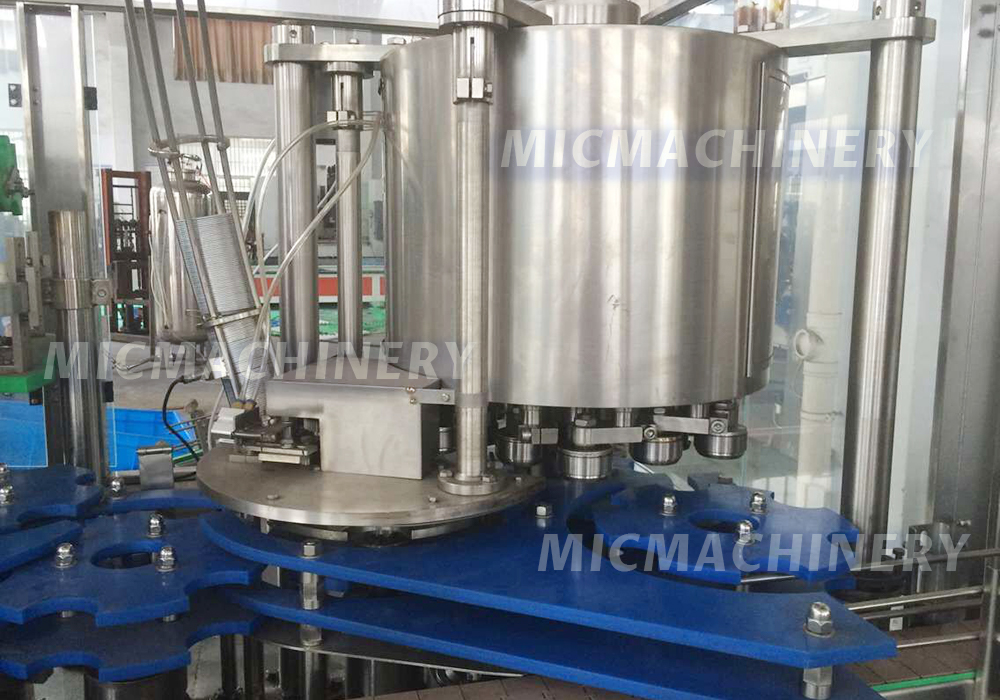

Aluminum Can Seaming Machine An aluminum can seaming machine efficiently seals aluminum cans with precision, ensuring airtight closure for beverage packaging. It improves production speed, reduces waste, and maintains product freshness. |
Working Principle of Soft Drink Filling Machine
The MIC 24-6 automatic soft drink filling machine operates on an advanced isobaric filling mechanism designed specifically for carbonated beverages. The working process includes:
1）Bottle Feeding and Rinsing: Bottles are automatically fed into the machine and cleaned using high-pressure rinsing nozzles to ensure hygiene and remove any contaminants.
2）Isobaric Filling System: This technology equalizes the pressure inside the bottle and the filling tank, maintaining carbonation levels while ensuring precise and consistent filling.
3）Capping Station: Once filled, the bottles move to the capping station, where they are sealed with airtight caps to preserve the freshness and quality of the beverage.
4）Automated Output: The completed products are conveyed out of the machine, ready for further packaging or distribution.
The integration of rinsing, filling, and capping into a single machine streamlines the production process, reducing downtime and increasing overall productivity.
Advantages of Soft Drink Filling Machine
The MIC 24-6 carbonated soft drink filling machine offers several benefits that make it a preferred choice for beverage manufacturers:
High-Speed Performance: Designed to handle up to 6,000 bottles per hour, this machine is ideal for medium to large-scale production lines.
Precision and Consistency: The isobaric filling system ensures every bottle is filled accurately and maintains carbonation, providing a consistent product for your customers.
Versatility: The machine is compatible with various bottle shapes and sizes, making it suitable for a wide range of carbonated and non-carbonated beverages.
Durable Construction: Built with high-grade stainless steel, the machine is resistant to corrosion and designed to withstand rigorous industrial use.
Energy Efficiency: The soft drink packing machine is engineered to minimize energy consumption while maintaining optimal performance, reducing operational costs.
Hygiene Assurance: With an automated rinsing system and food-grade materials, the machine adheres to international hygiene and safety standards.
User-Friendly Operation: Equipped with an intuitive PLC control system, the machine allows operators to easily adjust settings and monitor performance.
Reduced Downtime: Its robust design and reliable components ensure consistent operation with minimal maintenance requirements.
At Jiangsu Mic Machinery, we are dedicated to providing cutting-edge solutions that enhance efficiency, reduce costs, and maintain the highest standards of quality. The MIC 24-6 automatic soft drink filling machine is a reliable and efficient addition to any production line, offering the perfect blend of performance and innovation for your carbonated beverage packaging needs.
MIC 24-6 Parameters
| Power | 3.5Kw |
| Filling heads | 24piece |
| Sealing heads | 6piece |
| Production capacity |
4000-8000CPH based on 330ml |
| Filling temperature | 0-4℃ |
| Filling pressure |
Max 5bar/0.5Mpa |
| Can diameter range |
Ф40-90MM |
| Bottle height | 92-168MM |
| Dimension | 2580*1700*1950mm |
| Weight | 3000Kg |
More Model And Speed Click
| Model | MIC 12-1 | MIC 18-1 | MIC 18-6 | MIC 24-6 | MIC 32-8 |
| Application | Beer, Carbonated Beverage, Gas Drinks, Cold Coffee, Sparking Water, Cider, Soda Water, Herbal Tea, Non-Carbonated Drinks And So On | ||||
| Packing Type | Aluminum Cans, Metal Cans, Tin Cans, Pet Cans Etc | ||||
| Speed | 1000-2000CPH | 1000-2500CPH | 3000-6000CPH | 4000-8000CPH | 6000-10000CPH |
| Filling Arrange | 180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L) | ||||
| Power | 1.1kw | 1.5kw | 2.5kw | 3.5kw | 4.2kw |
| Size | 1.8*1.3*1.95 (M) | 1.9*1.3*1.95(M) | 2.3*1.4*1.9（M） | 2.58*1.7*1.8（M） | 2.8*1.7*1.95（M) |
| Weight | 1800KG | 2100KG | 2500KG | 3000KG | 3800(KG) |
|
1 |
Name |
Brand |
|
2 |
Push Button |
Schneider France |
|
3 |
Electromagnetic Contactor |
Schneider France |
|
4 |
Relays |
Omron Japan |
|
5 |
Frequency Converter |
Siemens |
|
6 |
Air Cylinder |
AirTAC Taiwan |
|
7 |
Electromagnetic Valve |
AirTAC Taiwan |
|
8 |
PLC Control System |
Siemens |
|
9 |
Touch Screen |
Siemens |
|
10 |
Photoelectric Switch |
Autonics |
|
11 |
Proximity Switch |
Autonics |
|
12 |
Reducer |
Zhejiang Duoli China |
|
13 |
Sealing Motor |
Zhejiang Duoli China |
|
14 |
Barometer |
AirTAC Taiwan |
|
15 |
Bearing |
Harbin China |
