MIC 24-6 Carbonated Drink Fill System (4000-8000CPH)
Company Introduction
Jiangsu Mic Machinery is a leading manufacturer of advanced beverage production equipment, offering innovative solutions for the food and beverage industry. With a strong focus on quality, efficiency, and cutting-edge technology, we specialize in creating reliable machinery to meet the evolving needs of our clients. Our carbonated drink fill system products, including the MIC 24-6, are designed to help manufacturers achieve seamless production processes while maintaining the highest standards of quality and precision.
|
|
Aluminum Can Seaming Machine |
|
Isobaric pressure filling system |
 |
|
|
Precision Liquid Nitrogen Doser |
Working Principle of the Carbonated Filling Machine

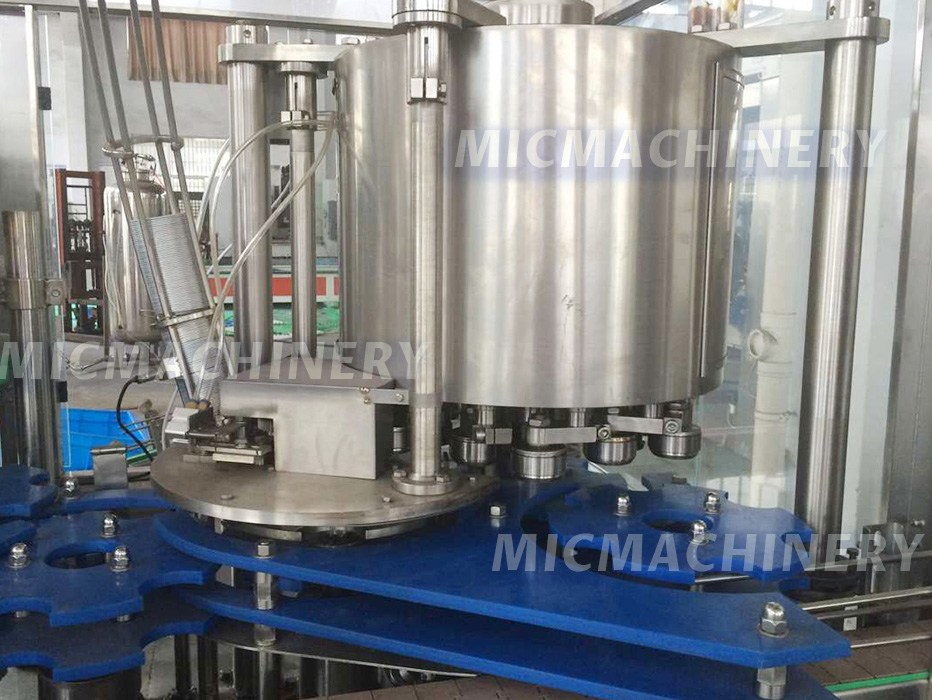

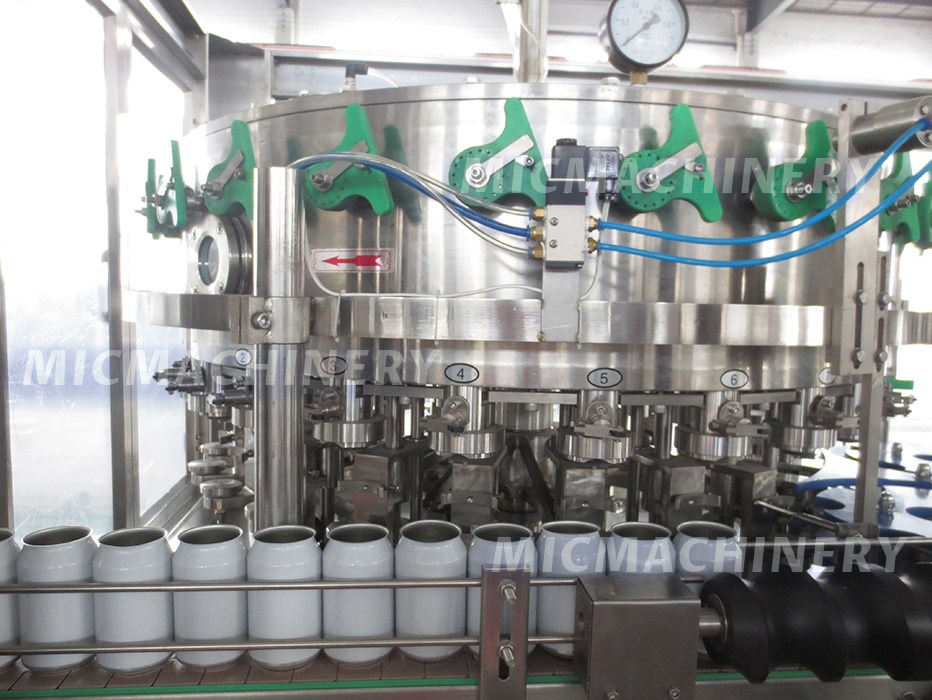

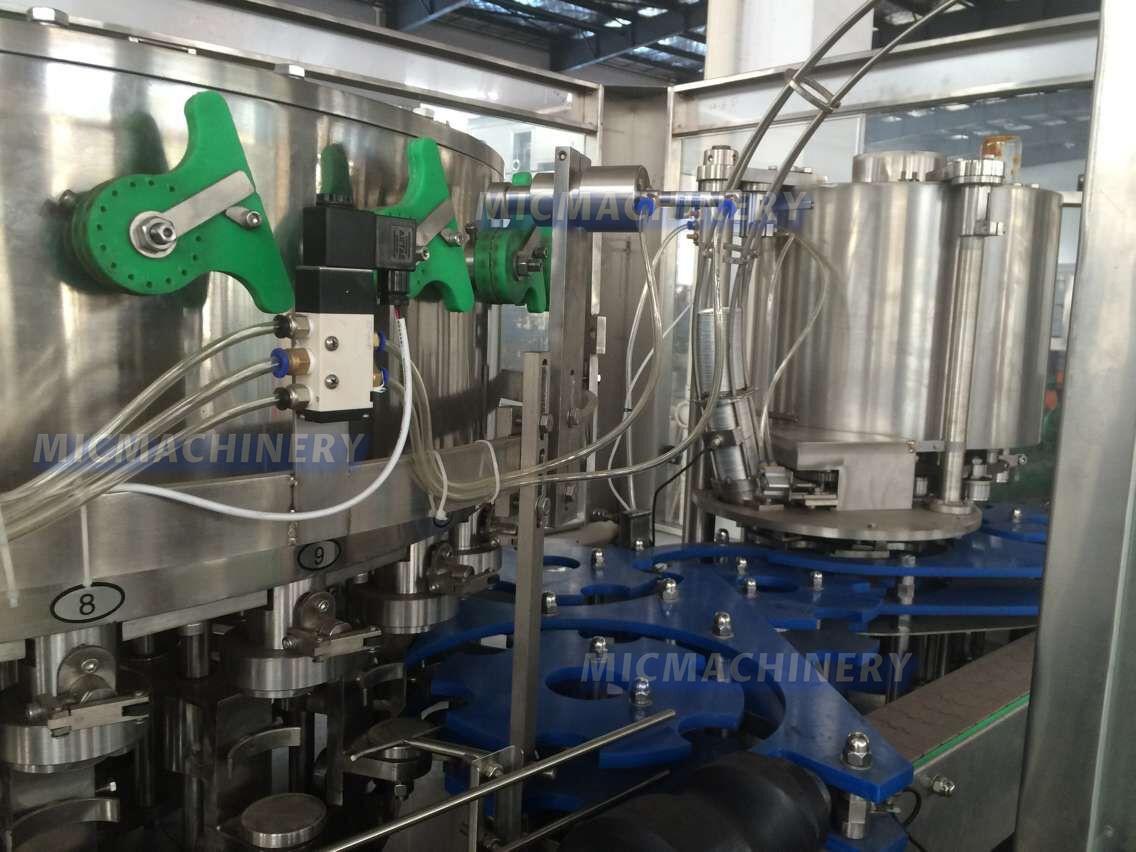

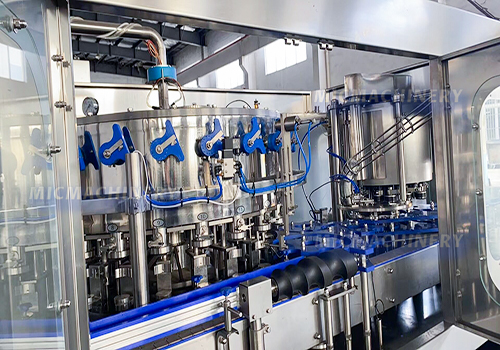

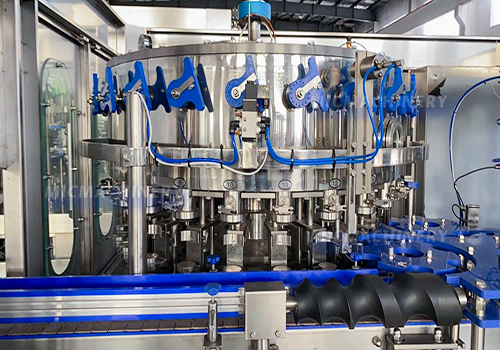

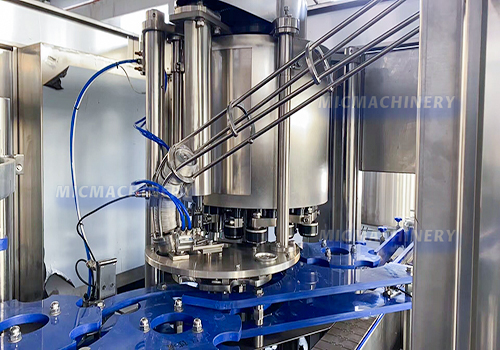

The MIC 24-6 carbonated filling machine utilizes isobaric filling technology to ensure precise carbonation levels and consistent product quality. The machine's process begins with the rinsing unit, which cleans the bottles thoroughly using high-pressure water jets. Next, the isobaric filling system maintains the internal pressure within the bottles to match the carbonation pressure of the beverage, minimizing carbonation loss during the filling process. Finally, the capping unit seals the bottles securely to preserve the beverage's freshness and carbonation.
This fully automated system is controlled through a PLC and touch-screen interface, allowing operators to adjust parameters and monitor the production process in real-time. The machine is also equipped with advanced sensors and safety mechanisms to ensure smooth and efficient operation.
Advantages of the Carbonated Filling Machine
The MIC 24-6 carbonated beverage fill equipment offers numerous advantages, making it an ideal choice for manufacturers:
1、High-Speed Efficiency
Capable of filling and sealing up to 12,000 bottles per hour, depending on container size and type.
2、Precision Filling
The isobaric filling system ensures accurate filling levels and carbonation retention in every bottle.
3、Versatility
Compatible with a wide range of bottle shapes and sizes, including PET and glass bottles.
4、Durable Construction
Made from high-grade stainless steel, the machine is corrosion-resistant and built to withstand demanding production environments.
5、Energy-Efficient Design
Optimized for low energy consumption, reducing operating costs without compromising performance.
6、Hygienic Operation
Features a sanitary design with easy-to-clean components, ensuring compliance with food safety standards.
7、Automation and Control
The intuitive PLC system and touch-screen interface provide precise control and user-friendly operation.
8、Safety Features
Equipped with overload protection, emergency stop functions, and other safety mechanisms for reliable performance.
At Jiangsu Mic Machinery, we take pride in providing top-quality solutions like the MIC 24-6 carbonated drink fill system to help our clients enhance their production capabilities. Designed with efficiency, durability, and precision in mind, this equipment is a trusted choice for producing high-quality carbonated beverages.
Mic 24-6 Parameters
| Power | 3.5Kw |
| Filling heads | 24piece |
| Sealing heads | 6piece |
| Production capacity |
4000-8000CPH based on 330ml |
| Filling temperature | 0-4℃ |
| Filling pressure |
Max 5bar/0.5Mpa |
| Can diameter range |
Ф40-90MM |
| Bottle height | 92-168MM |
| Dimension | 2580*1700*1950mm |
| Weight | 3000Kg |
|
1 |
Name |
Brand |
|
2 |
Push Button |
Schneider France |
|
3 |
Electromagnetic Contactor |
Schneider France |
|
4 |
Relays |
Omron Japan |
|
5 |
Frequency Converter |
Siemens |
|
6 |
Air Cylinder |
AirTAC Taiwan |
|
7 |
Electromagnetic Valve |
AirTAC Taiwan |
|
8 |
PLC Control System |
Siemens |
|
9 |
Touch Screen |
Siemens |
|
10 |
Photoelectric Switch |
Autonics |
|
11 |
Proximity Switch |
Autonics |
