MIC 24-24-6 Soft Drink Filling Machine (Speed 3000-6000BPH)
Machine Is Suitable For
The MIC 24-24-6 soft drink filling machine is designed to meet the needs of beverage manufacturers seeking efficient, high-capacity equipment for carbonated and non-carbonated soft drink production. This advanced machine is ideal for filling and packaging a variety of beverages, including soda, sparkling water, and flavored soft drinks, into PET, glass, or similar bottles of different shapes and sizes. Its high-speed capabilities make it particularly suitable for medium to large-scale production lines, ensuring consistent quality and output.
|
|
|
|
Chuck The brewery bottle filler Chuck securely holds bottles in place during the filling process, ensuring accurate positioning and preventing movement. This enhances filling precision and reduces the risk of spillage or contamination. |
 |
|
|

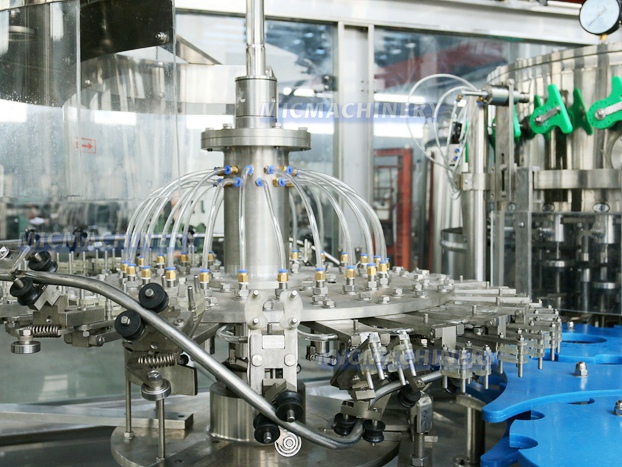

Washing Part The washing part of the beer bottle filler ensures bottles are thoroughly cleaned before filling. It uses high-pressure water and sanitizing solutions to remove debris and contaminants, ensuring a hygienic filling process. |
Working Principle of Soft Drink Filling Machine
The MIC 24-24-6 automatic soft drink filling machine operates on a fully integrated three-in-one system that combines rinsing, filling, and capping into one seamless process:
1）Rinsing System: Bottles are automatically fed into the machine and passed through a high-pressure rinsing station. This ensures thorough cleaning to meet hygiene standards.
2）Isobaric Filling: The heart of the machine is its isobaric filling system, which equalizes pressure between the beverage tank and bottles to preserve carbonation. This ensures precise and consistent filling while maintaining the product's quality.
3）Capping Station: Filled bottles are transferred to the capping unit, where they are securely sealed with airtight caps, protecting the drink's freshness and carbonation.
4）Automated Output: After capping, the bottles are smoothly conveyed out of the machine for further packaging.
The entire process is managed through an advanced PLC control system, enabling precise adjustments and real-time monitoring to ensure optimal performance.
Advantages of Soft Drink Filling Machine
The MIC 24-24-6 soft drink packaging machine offers numerous benefits that make it a standout choice for beverage production:
1、High Efficiency
Capable of handling up to 12,000 bottles per hour, this machine supports large-scale production without compromising on quality.
2、Superior Precision
The isobaric filling mechanism ensures accurate and uniform filling, maintaining the carbonation and flavor profile of the beverage.
3、Versatile Application
This machine accommodates bottles of various sizes and materials, making it adaptable to diverse product lines.
4、Durable Construction
Made from high-quality stainless steel, the machine is corrosion-resistant, ensuring long-lasting performance in demanding environments.
5、Energy-Efficient Design
Engineered for energy savings, the automatic soft drink filling machine helps reduce operational costs while maintaining superior output.
6、Hygienic Operation
All components in contact with the beverage are made from food-grade materials, ensuring compliance with international hygiene standards.
7、User-Friendly Controls
The intuitive PLC control system allows operators to easily adjust settings, monitor operations, and troubleshoot issues.
8、Reduced Downtime
With reliable components and a robust design, the machine operates efficiently with minimal maintenance requirements.
At Jiangsu Mic Machinery, we are committed to delivering cutting-edge solutions that combine performance, durability, and innovation. The MIC 24-24-6 soft drink filling machine is an excellent choice for manufacturers seeking to elevate their beverage production capabilities while maintaining product integrity and operational efficiency.
|
Model |
MIC-24-24-6 |
|
Washing heads |
24pcs |
|
Filling heads |
24pcs |
|
Capping heads |
6pcs |
|
Volume |
0.1-1L Customizable |
|
Production capacity |
4000-5000bottle/hr |
|
Filling method |
Isobaric |
|
Power |
4.5kw 380V/50HZ(According to customer) |
|
Air pressure |
0.7Mpa |
|
Bottle height, bottle diameter |
180-300MM ￠50-90MM |
|
Wash bottle water pressure |
0.6~0.8 Mpa |
|
Weight |
3500Kg |
|
Dimension |
2200×1800×2550mm |
|
Filling speed |
4000-5000BPH |
|
1 |
Name |
Brand |
|
2 |
Push Button |
Schneider France |
|
3 |
Electromagnetic Contactor |
Schneider France |
|
4 |
Relays |
Omron Japan |
|
5 |
Frequency Converter |
Siemens |
|
6 |
Air Cylinder |
AirTAC Taiwan |
|
7 |
Electromagnetic Valve |
AirTAC Taiwan |
|
8 |
PLC Control System |
Siemens |
|
9 |
Touch Screen |
Siemens |
|
10 |
Photoelectric Switch |
Autonics |
|
11 |
Proximity Switch |
Autonics |
|
12 |
Reducer |
Zhejiang Duoli China |
|
13 |
Sealing Motor |
Zhejiang Duoli China |
|
14 |
Barometer |
AirTAC Taiwan |
|
15 |
Bearing |
Harbin China |
