MIC 18-18-1 Carbonated Drink Filling Machine (800-1500BPH))
Machine Is Suitable For
The carbonated drink filling machine is designed to meet the needs of modern beverage manufacturers who produce carbonated beverages such as sodas, sparkling water, and energy drinks. This machine is suitable for filling a wide range of container types, including PET bottles, glass bottles, and aluminum cans. Whether you operate a small-scale production line or a high-capacity factory, this automatic carbonated drink filler ensures precise and efficient filling while maintaining the integrity of the carbonation in your products.
|
|

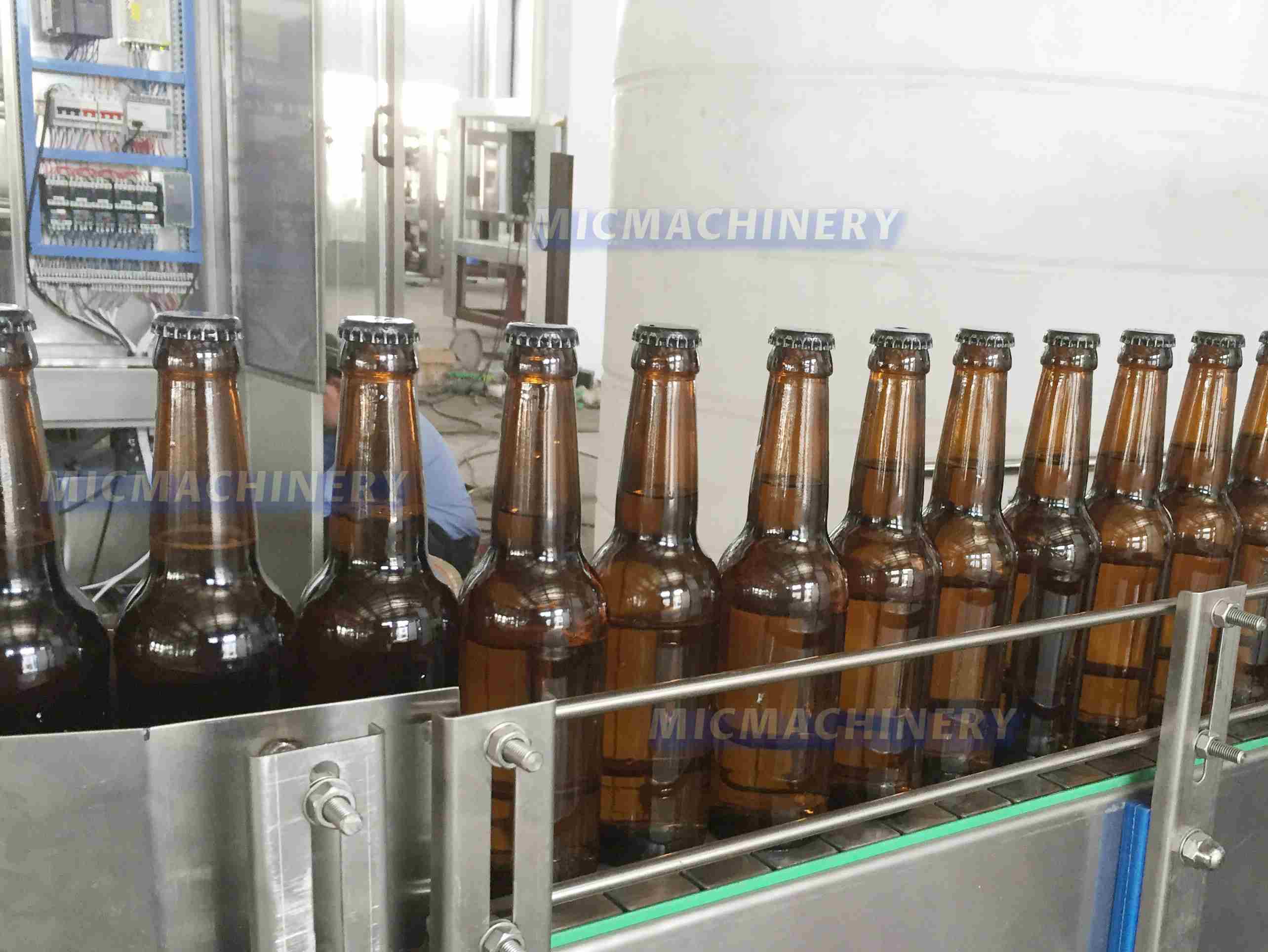

Beer bottling production line |
|

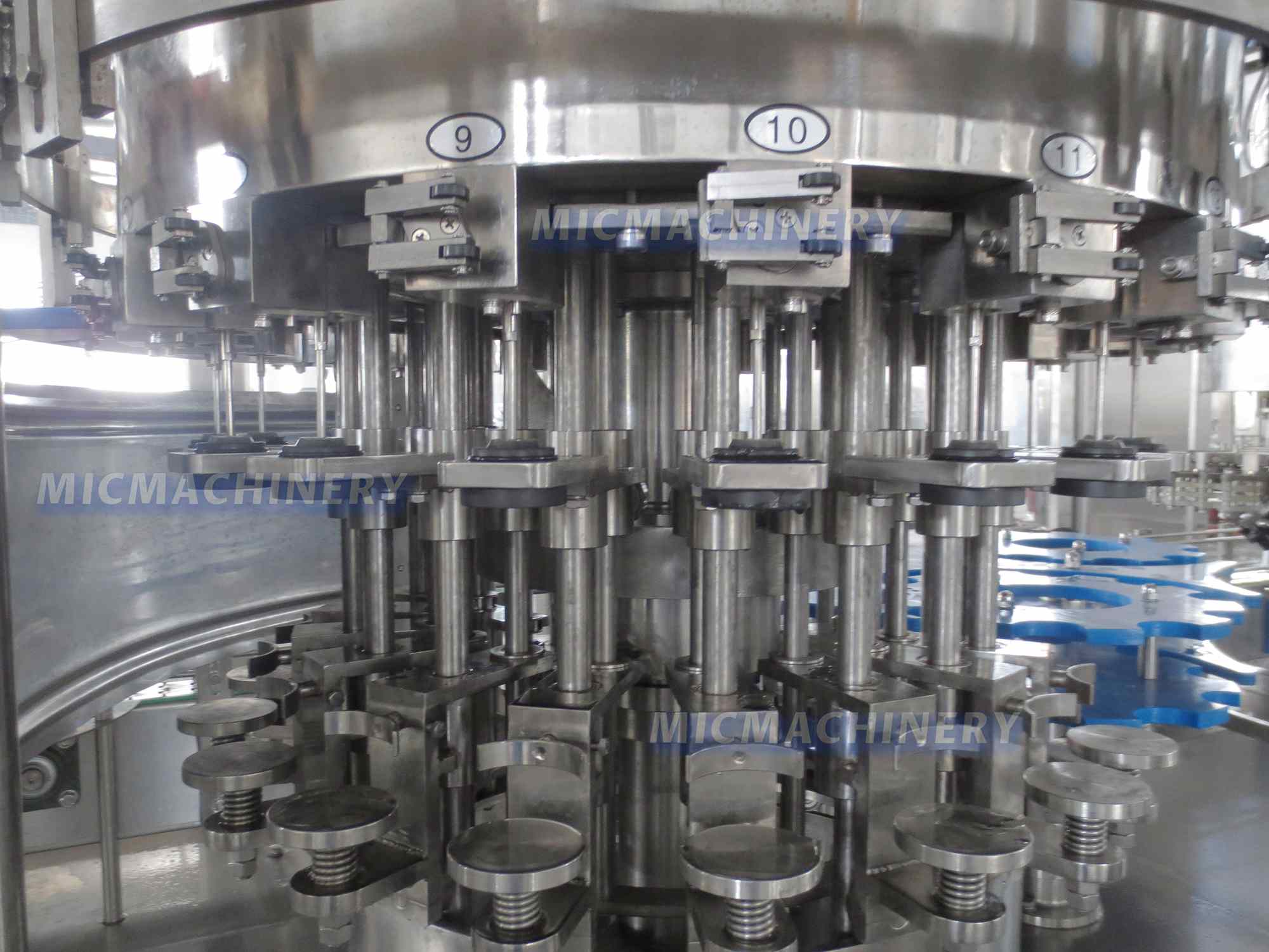

Filling Head The filling head of the beer bottling machine ensures precise and consistent beer dispensing. It utilizes advanced technology to maintain accurate fill levels, minimizing wastage and ensuring high-quality standards.
|
|
|
|

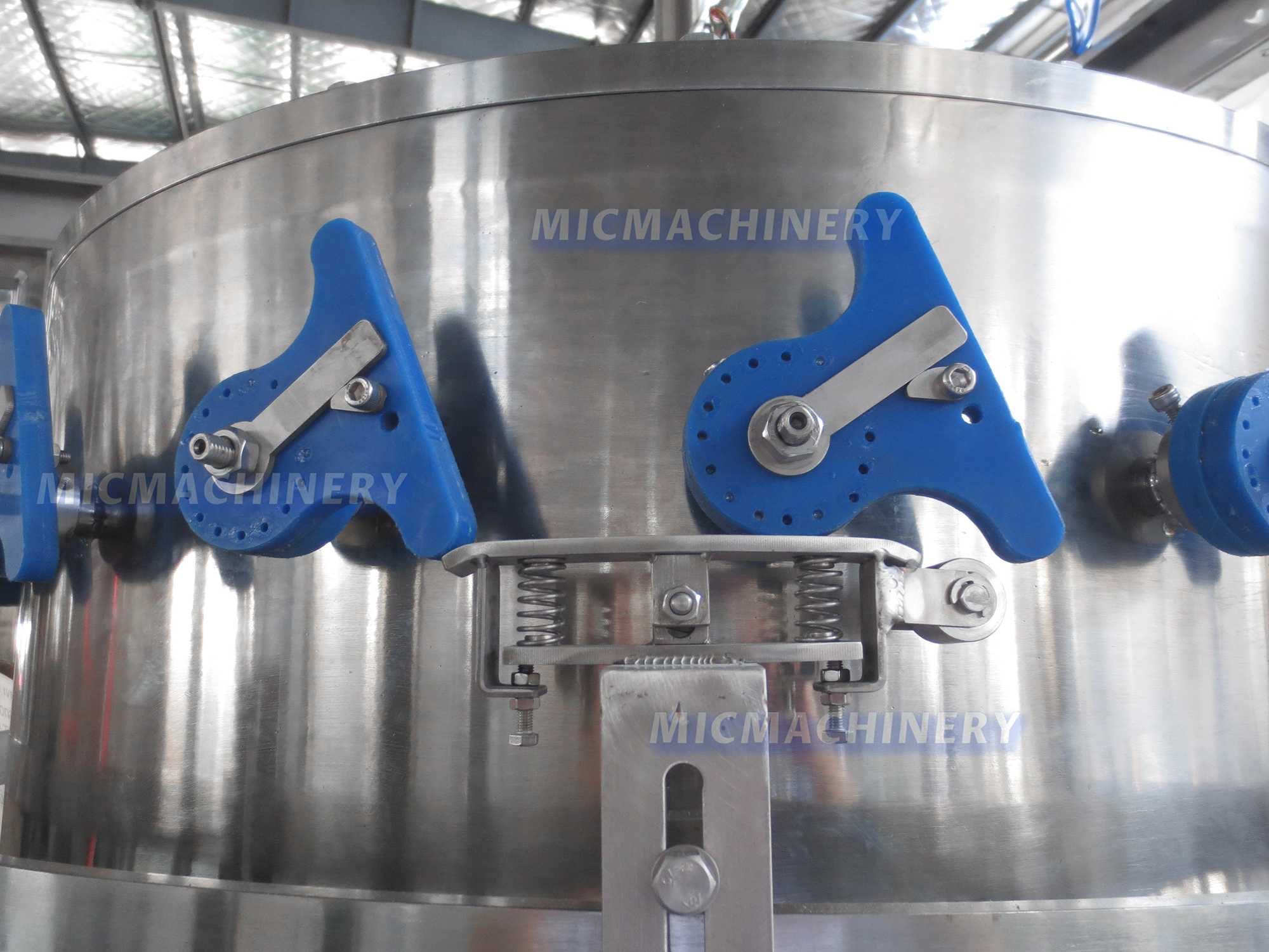

Filling Part |
Machine Features
Our carbonated filling machine is equipped with advanced features that enhance its efficiency, reliability, and versatility:
Integrated Functionality: This machine combines rinsing, filling, and capping processes into a single, seamless operation, reducing production time and labor costs.
High Filling Precision: Using advanced flow meters and pressure control systems, the machine ensures accurate filling levels while maintaining carbonation.
Customizable Settings: The automatic carbonated drink filler supports adjustable filling speeds and volumes to accommodate various production requirements.
Versatile Compatibility: Compatible with multiple bottle shapes and sizes, it provides flexibility for manufacturers with diverse product lines.
Durable Construction: Built with high-quality stainless steel, the machine is resistant to corrosion, easy to clean, and compliant with food-grade standards.
Energy Efficiency: Designed to optimize energy consumption, it lowers operating costs while delivering top-tier performance.
User-Friendly Interface: The intuitive control panel and automation reduce manual intervention and simplify operation.
Machine Introduction
The carbonated drink filling machine offered by Jiangsu Mic Machinery is a state-of-the-art solution tailored for beverage manufacturers. Engineered with cutting-edge technology, this machine ensures the consistent and efficient filling of carbonated beverages while preserving their fizz and quality.
This carbonated filling machine features a compact design that seamlessly integrates into existing production lines, making it an ideal choice for businesses of all sizes. With a focus on high-speed performance, the machine can fill and seal thousands of bottles per hour, ensuring that production demands are met with ease.
At Jiangsu Mic Machinery, we take pride in providing reliable and efficient equipment, and our automatic carbonated drink filler exemplifies this commitment. Its advanced features, robust design, and exceptional performance make it the perfect choice for companies looking to optimize their production lines and deliver premium-quality beverages to the market.
|
1 |
Filling Nozzle |
18 heads |
|
2 |
Water Rinse Nozzle |
18 heads |
|
3 |
Capping Head |
1 heads |
|
4 |
Filling Volume |
330ML |
|
5 |
Filling Speed |
800-1500BPH |
|
6 |
Air Pressure |
0.6Mpa |
|
7 |
Air Consume |
0.15m3/min |
|
8 |
Washing Water Pressure |
0.2MPa |
|
9 |
Washing Water Consume |
About 1T-2T/hour |
|
10 |
Main Motor Power |
0.75KW |
|
11 |
Total Power |
2.5KW |
|
12 |
Size |
2600mm*1550mm*2200mm (length* width* height) |
|
13 |
Total Weight |
2500KG |
|
14 |
Voltage |
220/380V 50-60Hz (Can be customized) |
|
15 |
Control |
PLC+Touch Screen |
|
16 |
Material |
SUS 304 |
|
17 |
Filling Pressure |
0.2~0.5Mpa |
| 1 | Name | Brand |
| 2 | Push Button | Schneider France |
| 3 | Electromagnetic Contactor | Schneider France |
| 4 | Relays | Omron Japan |
| 5 | Frequency Converter | Siemens |
| 6 | Air Cylinder | AirTAC Taiwan |
| 7 | Electromagnetic Valve | AirTAC Taiwan |
| 8 | PLC Control System | Siemens |
| 9 | Touch Screen | Siemens |
| 10 | Photoelectric Switch | Autonics |
| 11 | Proximity Switch | Autonics |
| 12 | Reducer | Zhejiang Duoli China |
| 13 | Sealing Motor | Zhejiang Duoli China |
| 14 | Barometer | AirTAC Taiwan |
| 15 | Bearing | Harbin China |
